Nexus AI Server
1 / 5
| Model | R2225V2 |
| CPU | supports 2 AMD EPYC 7002 7003 series processors |
| Memory | 32 DDR4 memory slots, 16 channels in total, up to 3200MHz, supports RDIMM/LRDIMM, supports up to 8TB memory |
| Storage controllers | Integrated 6Gb/s SATA controller, supports up to 16 SATA interfaces, optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller |
| GPU | Supports up to 2 full-height full-length double-width GPUs or 6 full-height full-length single-width GPUs (x16) or 8 half-height half-length single-width GPUs |
| PCIe | Up to 10 PCIe4.0 expansion slots Supports up to 6 full-height full-length PCIe4.0 x16 expansion slots |
| Power Supply | 1 or 2 power modules, support 1+1 redundancy, support hot swap Optional 220V AC/240V DC/336V DC/-48V DC input Optional 500W/800W/1300W/1600W/2000W Platinum power module Integrated BMC |
| Management Features | management chip, support IPMI2.0, Redfish, SOL, KVM, virtual media and other functions Provide 1 1Gbps RJ45 IPMI dedicated management port |
| Security functions | optional TPM/TCM security module, chassis cover intrusion detection, locked chassis cover |

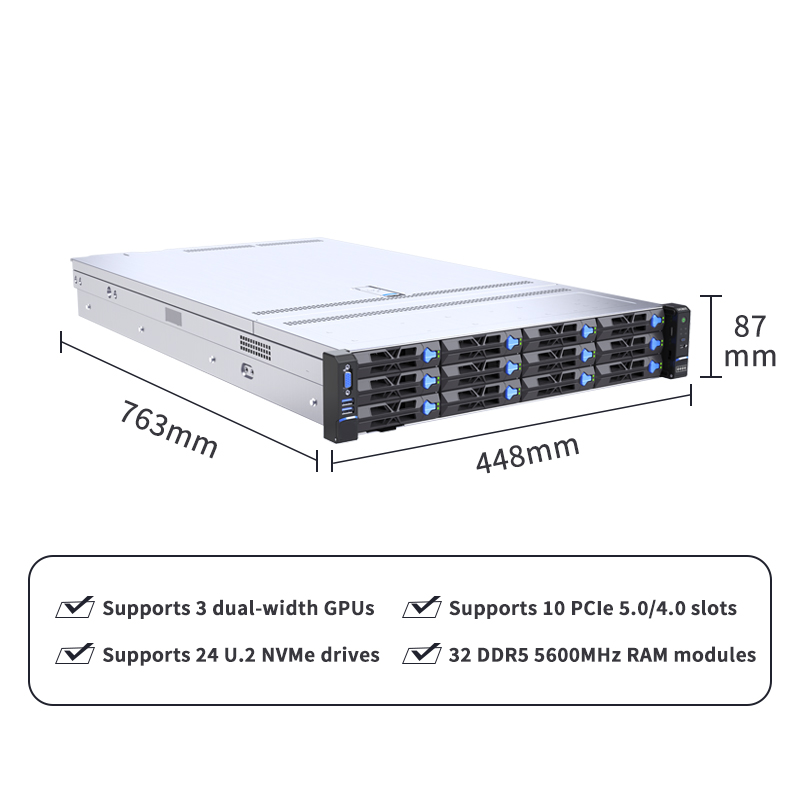

| Dimensions | 2U rack-mount chassis, width 448mm × height 87mm × depth 763mm (including mounting ears 808mm) |
| Warranty | 3 YEARS |
We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or telephone. We will give priority to your inquiry.
The best quality and reputation are always our main concerns.
Different products have different MOQ. Let us know your requirements and we will try our best to meet you. Small orders are also popular.
We have been specialized in this line for many years. We pay attention to quality and believe that only good quality can support long-term business. From the appearance, there is no difference between them, but they have a price gap, because they have internal differences, and the same price has different price levels.
The R2225V2 model supports up to 2 AMD EPYC 7002 or 7003 series processors.
We provide a 3-year warranty for the product to guarantee the best post-sales experience.
