Nexus AI Server
1 / 5

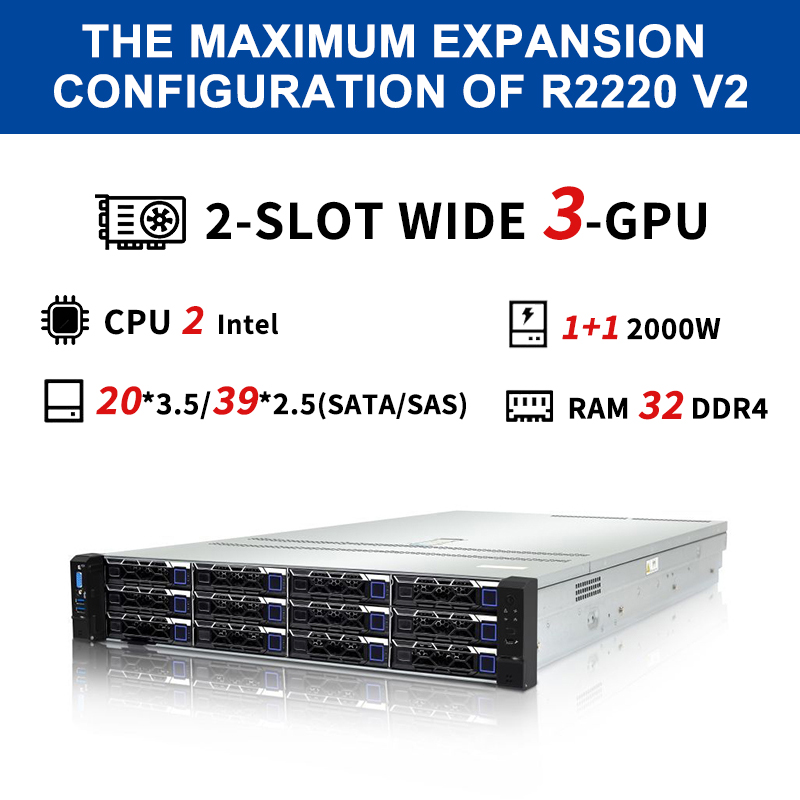

| Model | R2220V2 |
| Processor | 1/2 third-generation Intel® Xeon® Scalable processor (Ice Lake) (8300/6300/5300/4300 series), up to 270W |

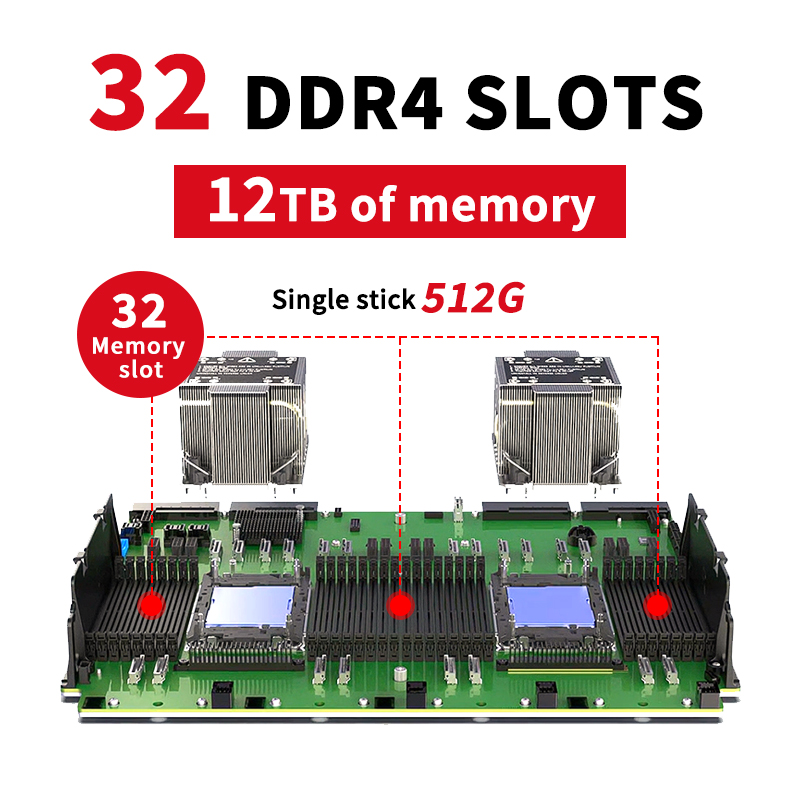

| Memory | 32 DDR4 memory slots with a total of 16 channels, up to 3200MHz; Supports up to 16 Intel® Optane™ persistent memory 200 series, up to 3200MT/S |
| Storage Controller | Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller |
| Storage | 20 3.5-inch hard drives with hot swappable support, or 39 2.5-inch hard drives with hot swappable support |
| GPU | Supports up to 4 full height, full length, and double width GPUs |
| Network | 1 onboard 1GbE RJ45 for IPMI, optional 4 × 1GbE / 2 × 10SFP+ / 4 × 10SFP+ / 2 × 25 SFP+ / 2 × 40SFP+ network daughter card |

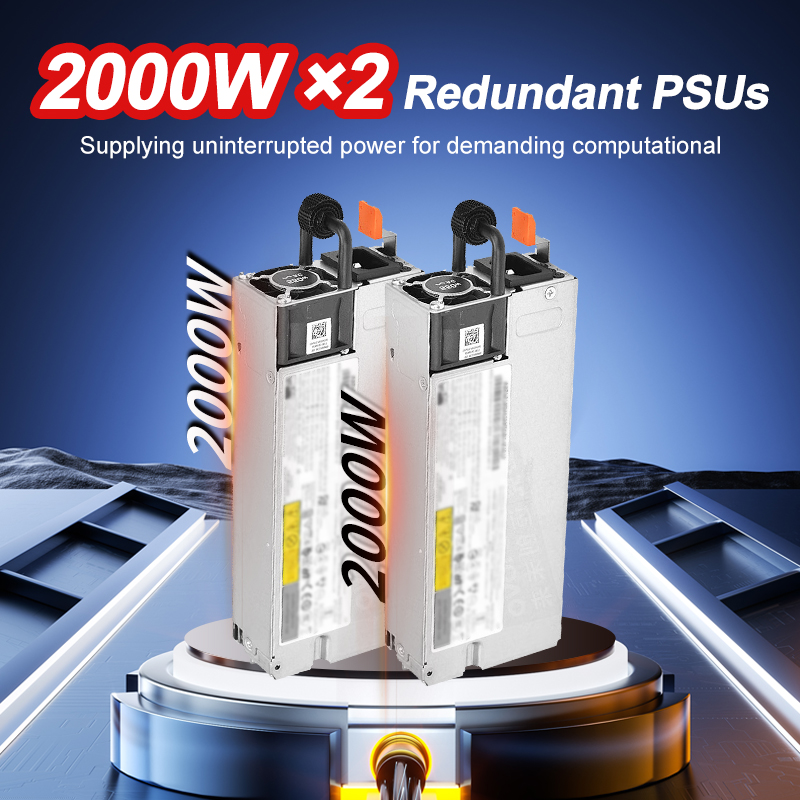

| Power | Can be configured with 2 power modules, supports 1+1 redundancy mode, and supports hot swapping |

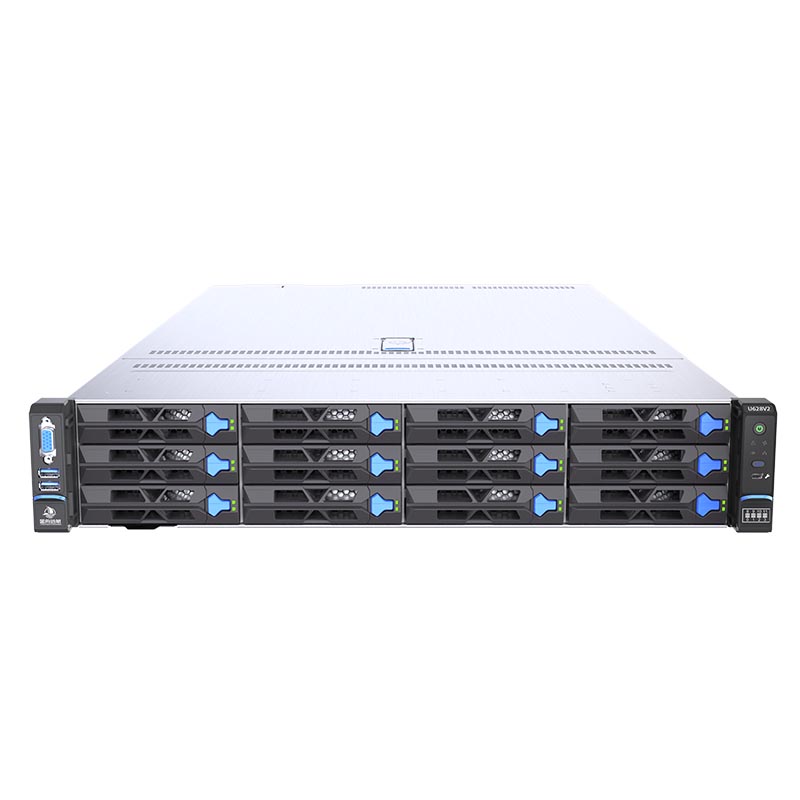

| Size | Rack mounted 2U, width 447mm × Height 87mm × 763mm |
| Warranty | 3 YEARS |
