Nexus AI Server
1 / 5

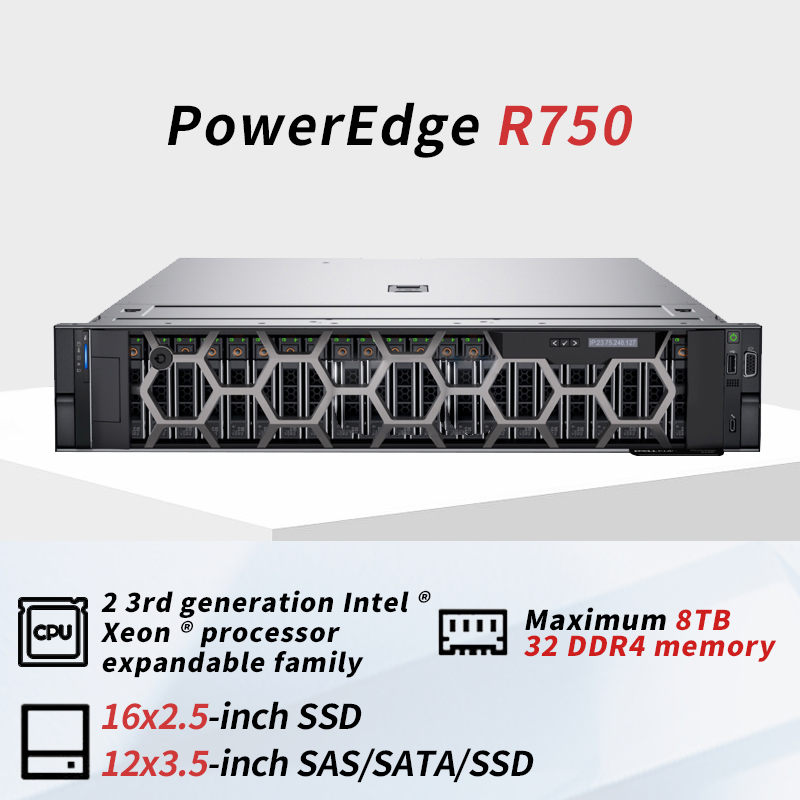

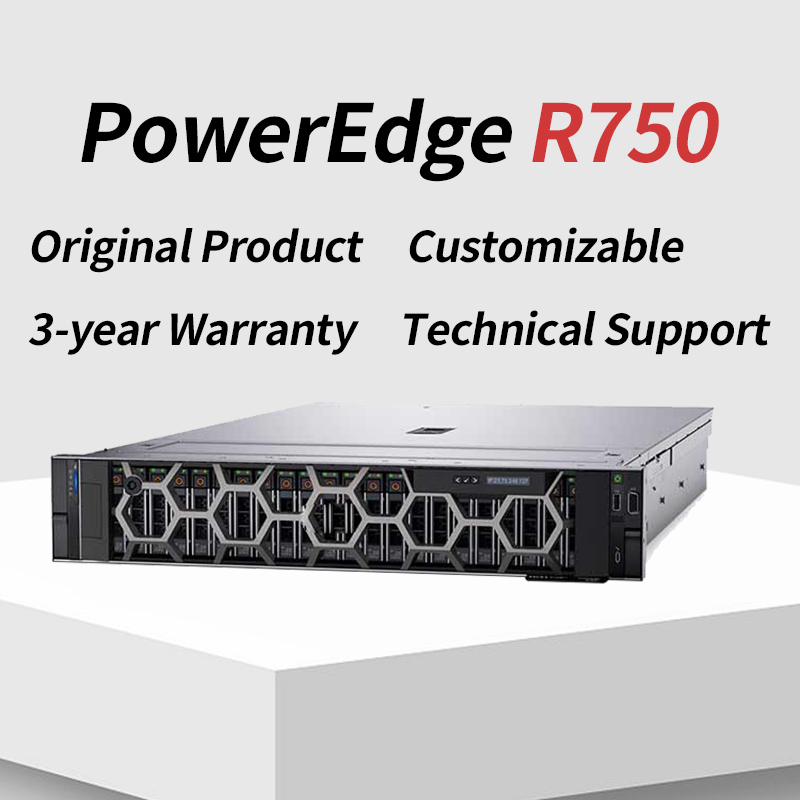

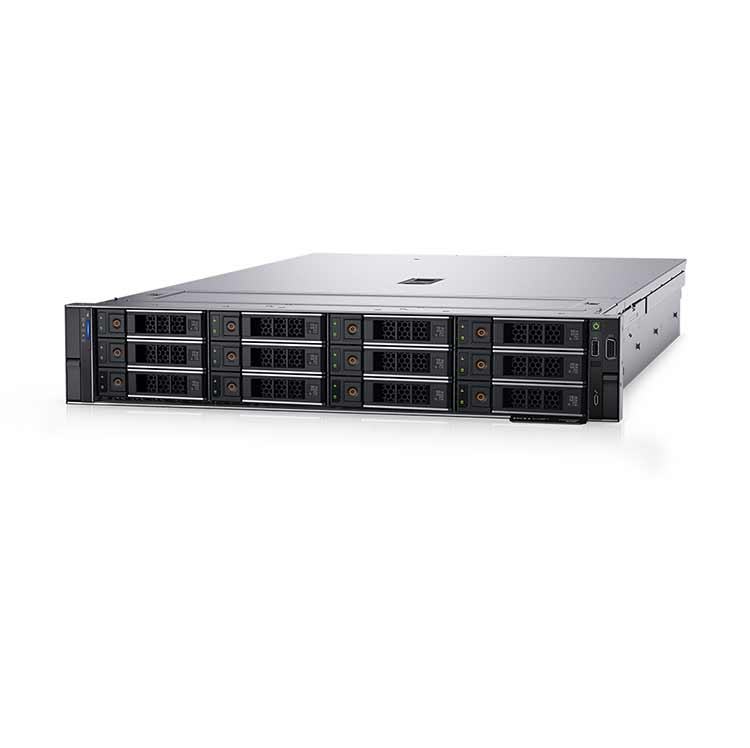

| Model | R750 |

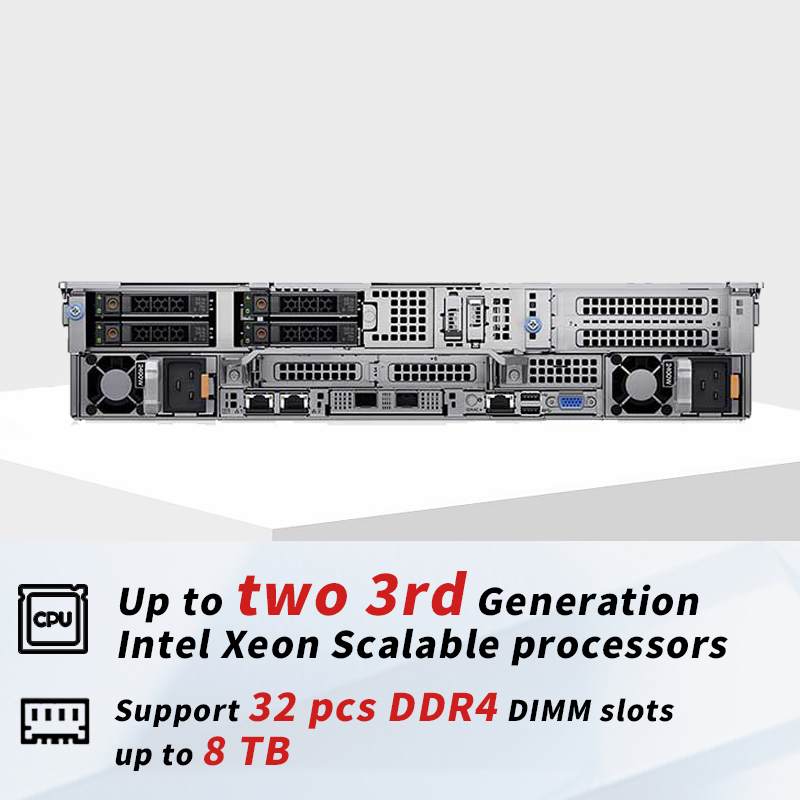

| Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
| Memory | 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s |
| Drive Bays |

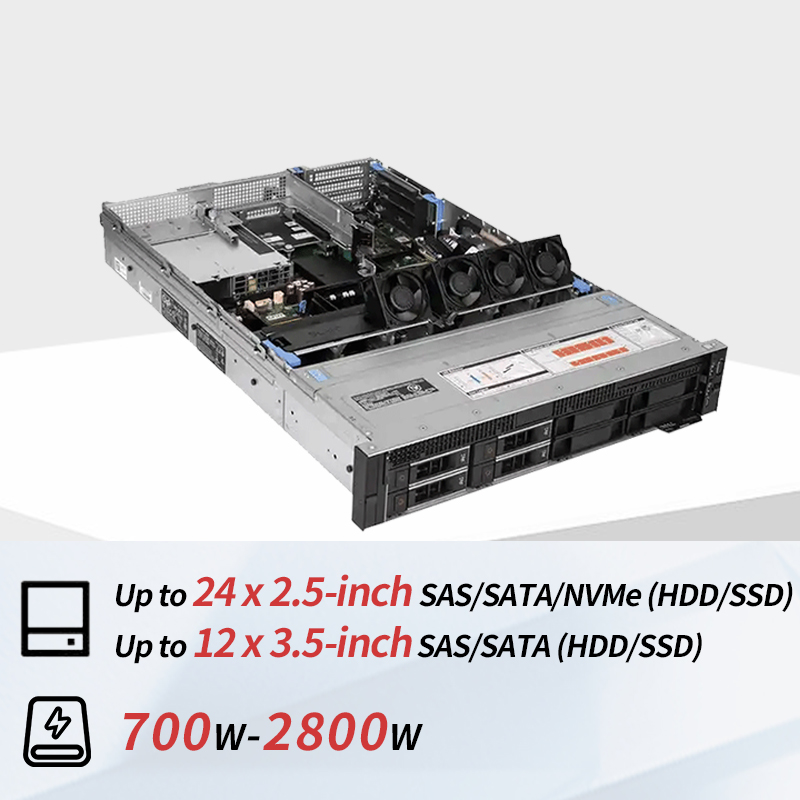

Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Storage controllers |
• Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
| GPU | GPU Options Up to two double-width 300 W, or three single-width 150 W, or six single-width 75 W accelerators |
| Power Supply |
• 700 W Titanium HLAC/240 mixed mode • 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode • 1100 W DC -48 - -60 V • 1400 W Platinum AC/240 mixed mode • 1800 W Titanium HLAC/240 mixed mode • 2400 W Platinum AC/240 mixed mode • 2800 W Titanium HLAC/240 mixed mode |
| Size |
• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 758.3 mm (29.85 inches) - without bezel 772.14 mm (30.39 inches) - with bezel |
| Warranty | 3 years |
