Nexus AI Server
1 / 5
| Model | R2220V3 |
| Processor | Up to 2 lntelĀ® XeonĀ® 4th generation Scalable processors 4400/5400/6400/8400 (SPR), up to TDP 350W |
| Memory | 32 DDR5 DIMM slots, 16 memory channels in total Support 32 DDR5 RDIMMs, maximum rate 4800MT/s Support 16 IntelĀ® Optaneā¢ Persistent Memory 300 Series Single capacity 8GB to 512GB. Maximum support 12.0TB system memory |
| Storage | Front: Up to 12 3.5-inch or 25 2.5-inch disks. Rear: Up to 4 3.5-inch + 2 2.5-inch disks. Internal: Supports 2 M.2 (PCIe4.0 x4) and up to 24 U.2 NVMe SSDs |
| Storage controllers | Onboard integrated 6Gb/s SATA controller, supports RAID 0/1/10/5. Optional 12Gb/s SAS HBA and RAID cards |
| GPU | Supports up to 3 double-width GPUs or 6 single-width GPUs |
| PCIe | Up to 10 PCIe expansion slots |
| Power Supply | 1 or 2 power modules, 1+1 redundancy, hot swap. 800W/1300W/1600W/2000W platinum modules |

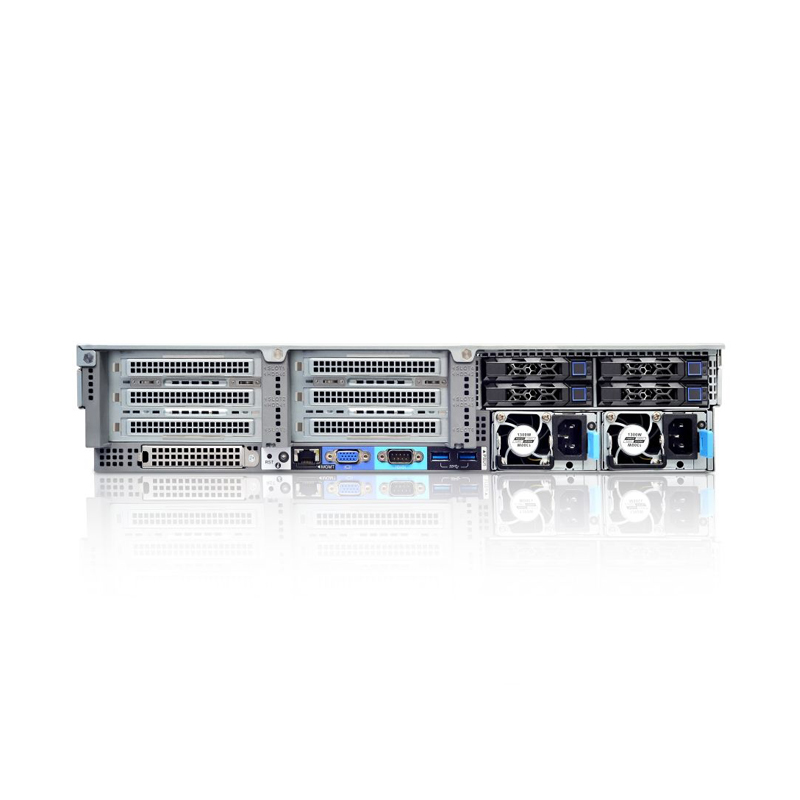

| Interface | Front: 1 VGA, 2 USB3.0, 1 LCD Mini USB. Rear: 1 VGA, 2 USB3.0, 1 RJ45 Mgmt, 1 RS232 COM |
| Warranty | 3 YEARS |
