Nexus AI Server
1 / 5
| Model | R2220 V3 |
| CPU | Intel® C741A |
| Processor | Up to 2 Intel® Xeon® 4th generation Scalable processors 4400/5400/6400/8400 (SPR), up to TDP 350W |
| Memory | 32 DDR5 DIMM slots, 16 memory channels; Support 32 DDR5 RDIMMs, max 4800MT/s; Support Intel® Optane™ Persistent Memory 300 Series; Max support 12.0TB system memory |
| Storage | Front: Up to 12 3.5" or 25 2.5" disks; Rear: Up to 4 3.5" + 2 2.5" or 4 2.5"; Internal: 2 M.2 (PCIe4.0 x4) and up to 24 U.2 NVMe SSDs |
| Storage controllers | Onboard integrated 6Gb/s SATA (RAID 0/1/10/5); Optional 12Gb/s SAS HBA and SAS RAID cards |
| GPU | Support up to 3 double-width GPUs or 6 single-width GPUs |
| PCIe | Up to 10 PCIe expansion slots |
| Power Supply | 1 or 2 power modules (1+1 redundancy); 800W/1300W/1600W/2000W platinum modules; Supports AC/DC inputs |

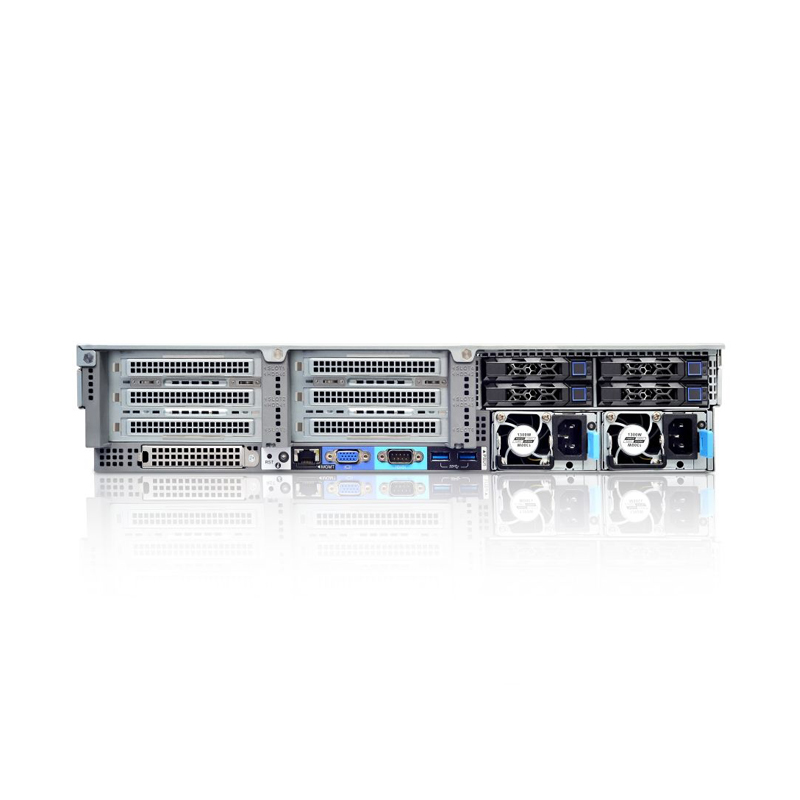

| Interface | Front: 1 VGA, 2 USB3.0, 1 LCD Mini USB; Rear: 1 VGA, 2 USB3.0, 1 RJ45 Mgmt, 1 RS232 COM |
| System fan | 4 hot-swappable fan modules (N+1 redundancy) with intelligent speed regulation |
| Operating temperature | Standard: 5°C to 35°C; Extended: 5°C to 40°C |
| Dimensions | 2U rack-mount; Width 447mm × Height 87mm × Depth 783mm |
| Warranty | 3 YEARS |
