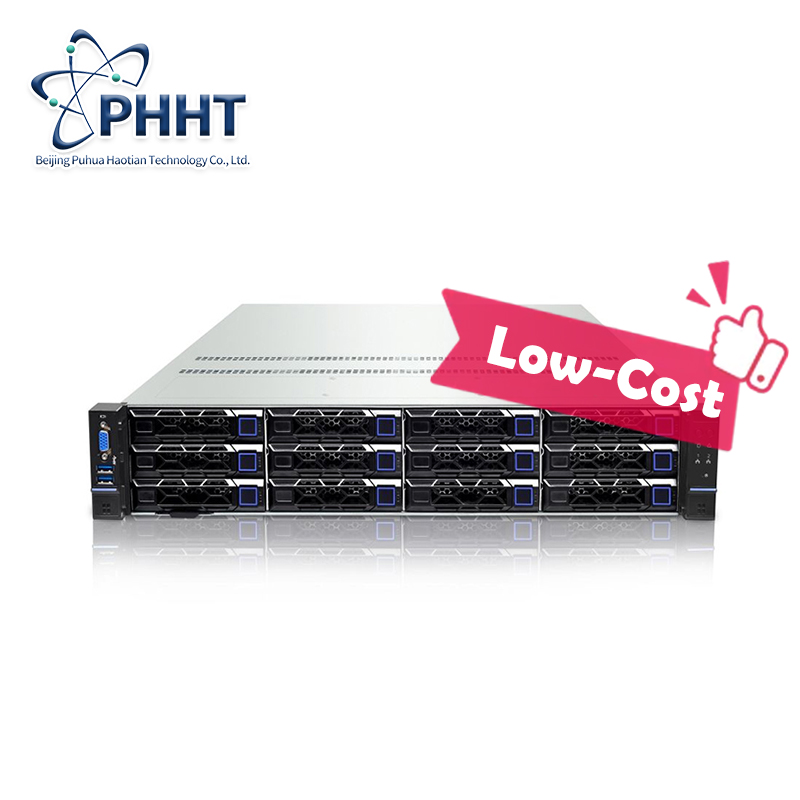

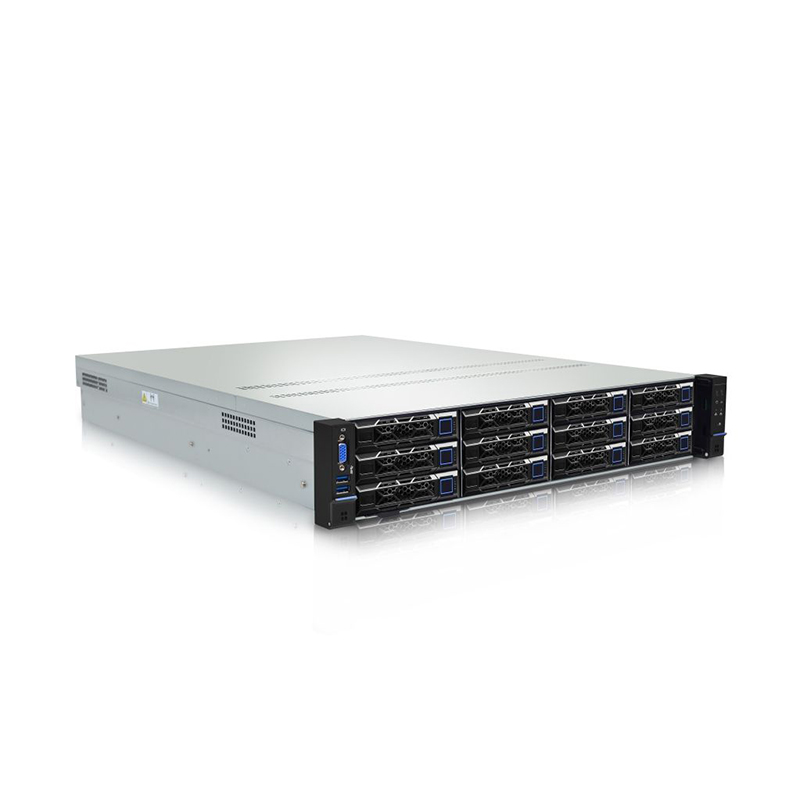

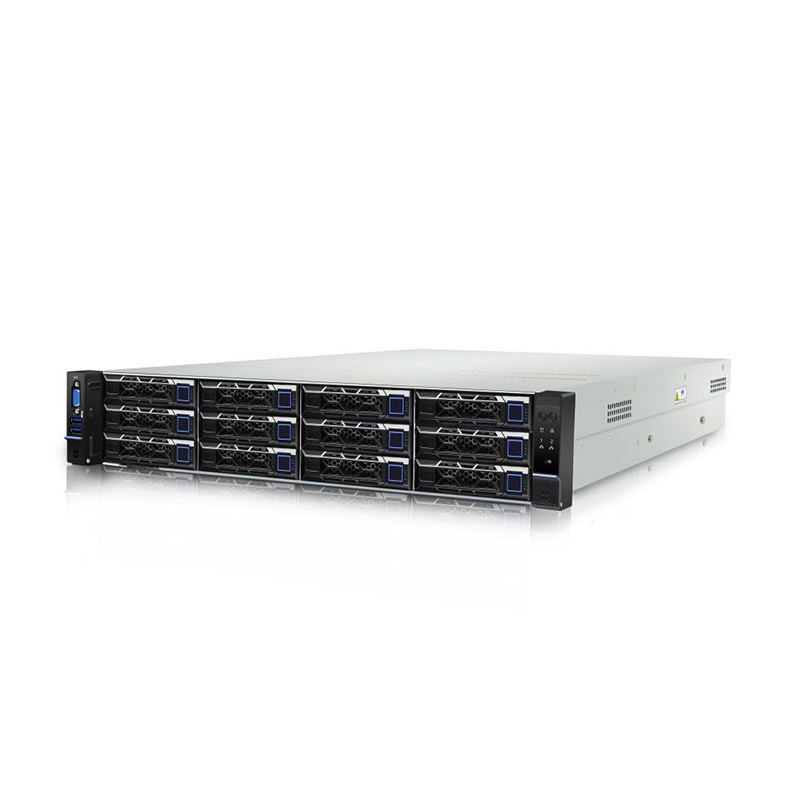

| Model | R2220v1 |
| Processor | 1/2 1st Generation Intel® Xeon® Scalable Processors, 3100/4100/5100/6100/8100 Series, TDP 205W 1/2 2nd Generation Intel® Xeon® Scalable Processors, 3200/4200/5200/6200/8200 Series, TDP 205W |
| Memory | 24 DDR4 DIMM slots, 12 memory channels Supports 2 DDR4 RDIMMs/LRDIMMs/NVDIMMs, maximum speed 2933MT/s Supports 12 Intel DCPMMs, maximum speed 2666MT/s Single capacity 8GB, 16GB, 32GB, 64GB, 128GB, 256G, 512G Supports up to 9.0TB system memory (with specific CPU models and Intel DCPMM) |
| Storage Controller | Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller. - 16x 3.5-inch + 2x 2.5-inch SAS/SATA/SSD (hot swap) - 31x 2.5-inch SAS/SATA/SSD - 16x 2.5-inch NVMe SSD - Built-in 1 PCIe M.2 (80/110mm), 2 SATA DOM |
| Network | Integrated 2x 1GbE; Optional 2x1GbE/4x1GbE/2x10GbE/4x10GbE/2x25GbE/2x40GbE daughter cards and standard PCIe network cards |
| GPU | 2 full-height full-length double-width GPUs |
| Ports | Front: 1 D-Sub VGA, 2 USB 3.0, 1 LCD Mini USB Rear: 1 D-Sub VGA, 2 USB 3.0, 1 RJ45 management port, 2 RJ45 Ethernet ports |
| Power Supply | 1 or 2 power modules, 1+1 redundancy, hot swap Optional 220v AC/240v DC/336v DC/-48v DC input Options: 550W/800W/1300W/1600W |
| Size | Rack-mounted 2U, Width 447mm x Height 87mm x Depth 808mm (788mm without mounting ears) |
| Warranty | 3 YEARS |
