Nexus AI Server
1 / 5
| Model | R650 XS |
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
| Memory |
• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 12 TB max • Supports registered ECC DDR4 DIMMs only |
| Network Options | 1 x OCP 3.0 (x8 PCIe lanes) |
| Storage controllers |
Internal controllers: PERC H745, HBA355I, S150, H355, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S1): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
| GPU | Up to three 75 W single-width GPU |
| PCIe | Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAP I/O modules) or 2 x PCIe (Gen4) full height slots |
| Power Supply |
• 800 W Platinum AC/240 Mixed Mode • 1100 W Titanium AC/240 Mixed Mode • 1400 W Platinum AC/240 Mixed Mode • 1100 W DC -48 - 60 V |
| Size |

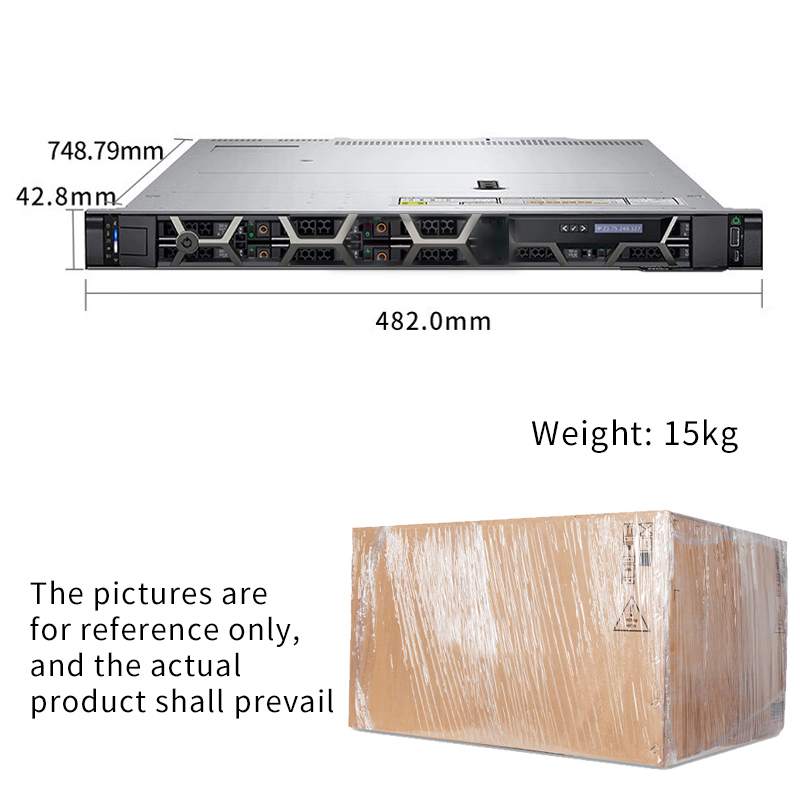

• Height – 42.8 mm (1.7 inches) • Width – 482 mm (18.97 inches) • Depth – 758.27 mm (29.85 inches) – without bezel / 772.11 mm (30.39 inches) – with bezel |
| Warranty | 3 Years |
