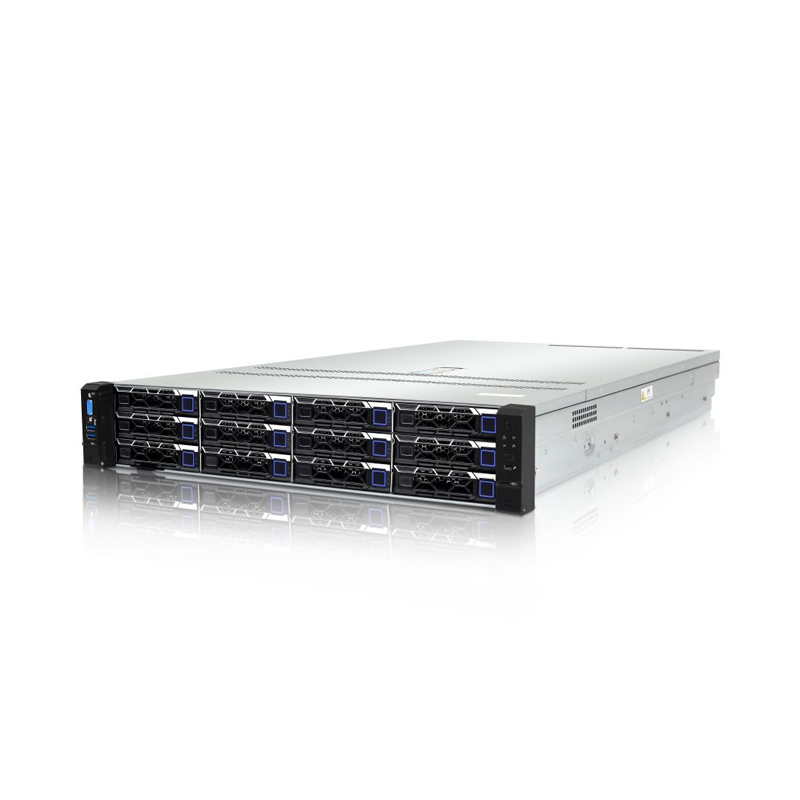

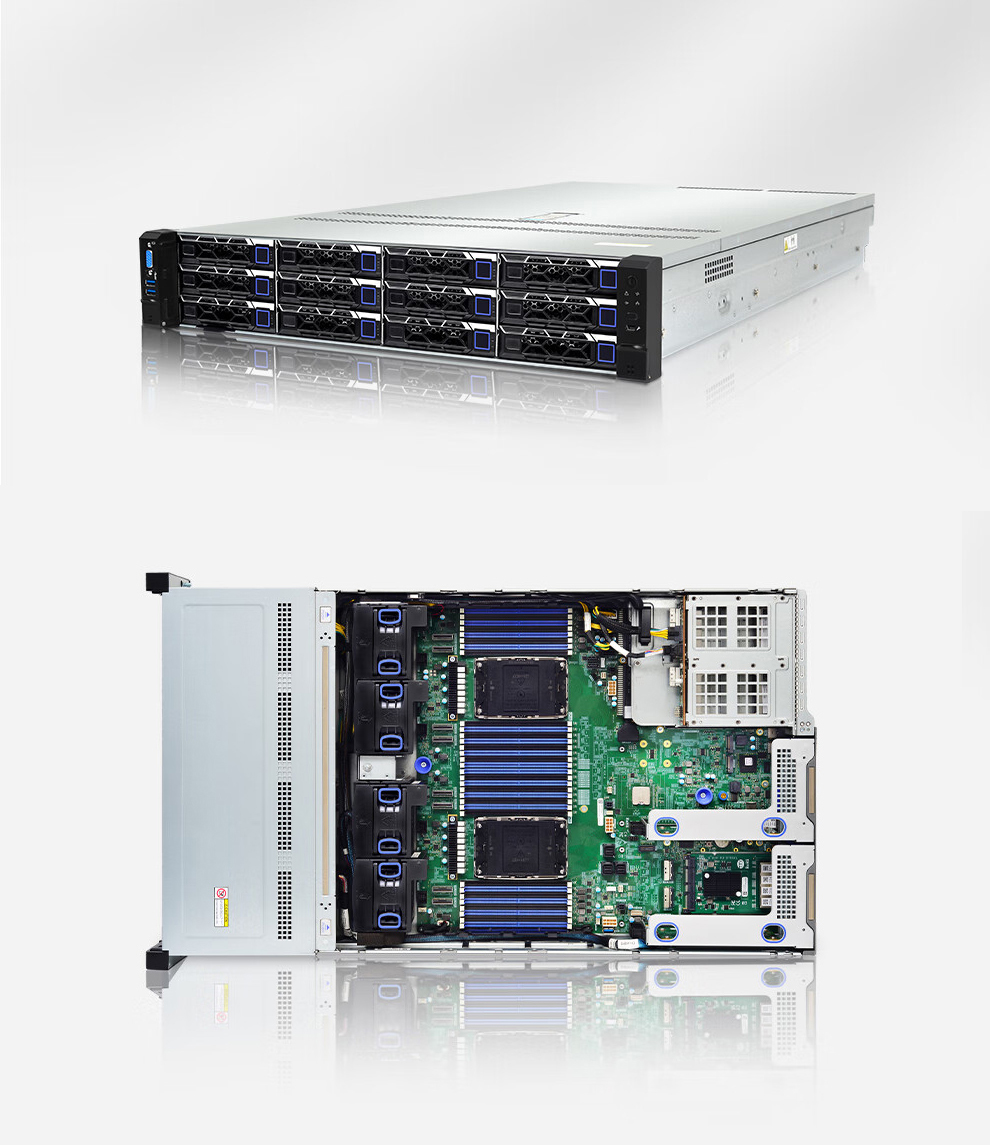

Nexus AI Server
1 / 5
| Model | R2225V2 |
| CPU | Supports 2 AMD EPYC 7002 / 7003 series processors |
| Memory | 32 DDR4 memory slots, 16 channels in total, up to 3200MHz, supports RDIMM/LRDIMM, up to 8TB memory |
| Storage Controllers | Integrated 6Gb/s SATA controller, up to 16 SATA interfaces, optional support for 12Gb/s SAS HBA and SAS RAID controller |
| GPU Support | Up to 2 full-height full-length double-width GPUs, or 6 single-width GPUs (x16), or 8 half-height single-width GPUs |
| PCIe Expansion | Up to 10 PCIe 4.0 expansion slots; supports up to 6 full-height full-length PCIe 4.0 x16 slots |
| Power Supply | 1 or 2 power modules (1+1 redundancy), hot-swap; Options: 500W/800W/1300W/1600W/2000W Platinum; supports 220V AC / 240V DC / 336V DC / -48V DC |
| Management | Integrated BMC management chip, supports IPMI 2.0, Redfish, SOL, KVM, virtual media; 1x 1Gbps RJ45 dedicated IPMI port |
| Security | Optional TPM/TCM module, chassis cover intrusion detection, locked chassis cover |

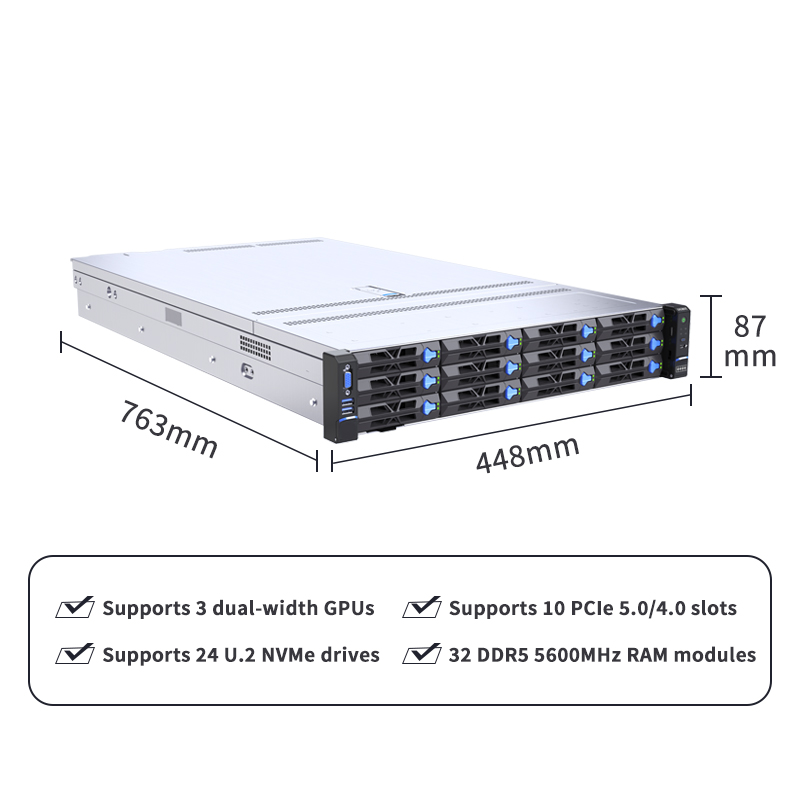

| Dimensions | 2U rack-mount: Width 448mm × Height 87mm × Depth 763mm (808mm with ears) |
| Warranty | 3 YEARS |
