Nexus AI Server
1 / 5
| Model | R2220 V3 |
| CPU | Intel® C741A |
| Processor | Up to 2 Intel® Xeon® 4th generation Scalable processors 4400/5400/6400/8400 (SPR), up to TDP 350W |
| Memory | 32 DDR5 DIMM slots, 16 memory channels in total. Support 32 DDR5 RDIMMs, maximum rate 4800MT/s. Support 16 Intel® Optane™ Persistent Memory 300 Series. Single capacity 8GB - 512GB. Maximum support 12.0TB system memory. |

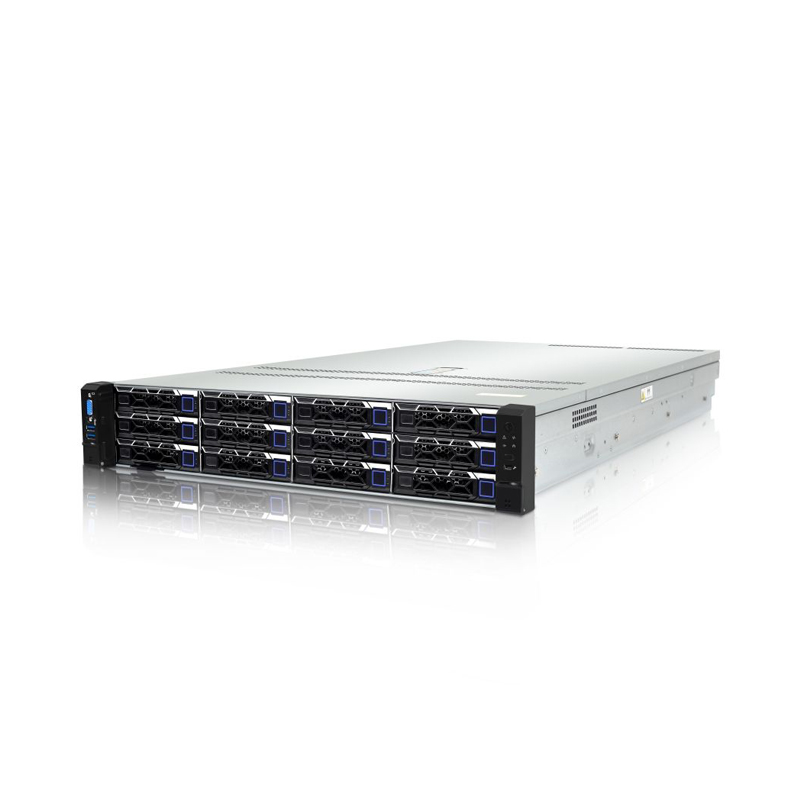

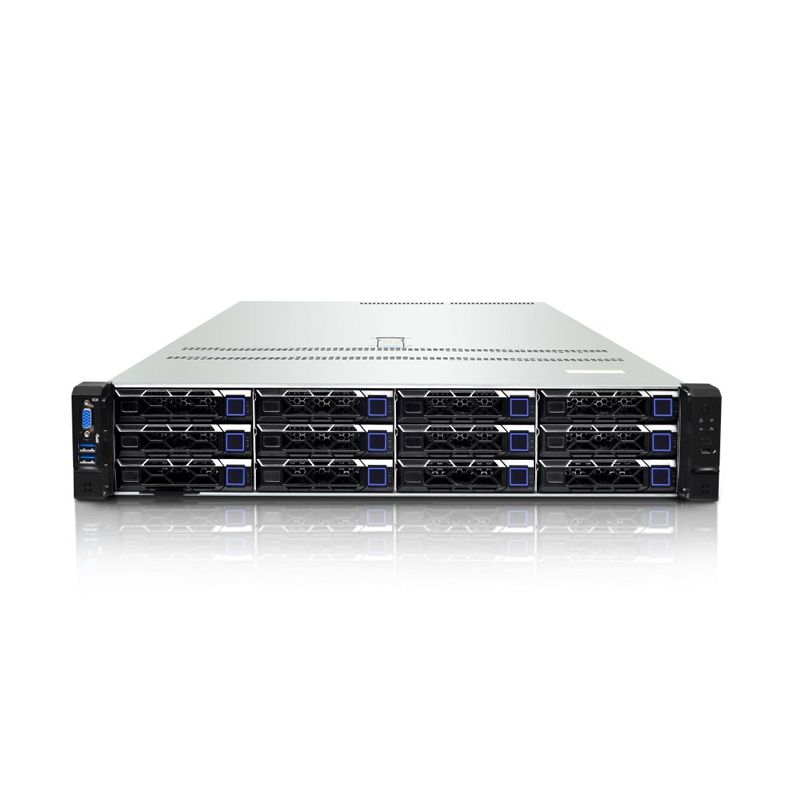

| Storage | Front: Up to 12 3.5-inch (optional 8 NVMe) or 25 2.5-inch disks. Rear: Up to 4 3.5-inch + 2 2.5-inch or 4 2.5-inch disks. Internal: 2 M.2 (PCIe4.0 x4) and up to 24 U.2 NVMe SSDs. |
| Storage controllers | Onboard integrated 6Gb/s SATA controller, supports RAID 0/1/10/5. Optional 12Gb/s SAS HBA and SAS RAID card. |
| GPU | Can support up to 3 double-width GPUs or 6 single-width GPUs. |
| PCIe | Up to 10 PCIe expansion slots. |
| Power Supply | 1 or 2 modules, 1+1 redundancy, hot swap. 220V AC/240V DC/336V DC/-48V DC input. Optional 800W/1300W/1600W/2000W platinum modules. |

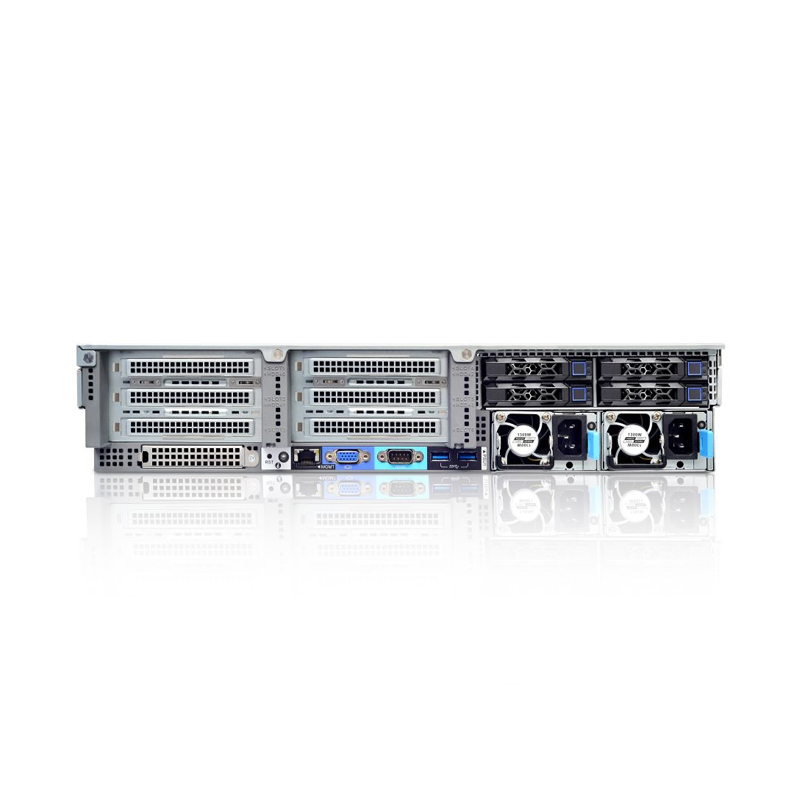

| Interface | Front: 1 VGA, 2 USB3.0, 1 LCD Mini USB. Rear: 1 VGA, 2 USB3.0, 1 RJ45 management port, 1 RS232 COM. |
| System fan | 4 hot-swappable modules, N+1 redundancy, intelligent speed regulation and abnormal alarm. |
| Operating temperature | Standard: 5°C to 35°C. Extended: 5°C to 40°C. Storage: -40°C to 65°C. |
| Dimensions | 2U rack-mount chassis, width 447mm Ă— height 87mm Ă— depth 783mm. |
| Warranty | 3 YEARS |
