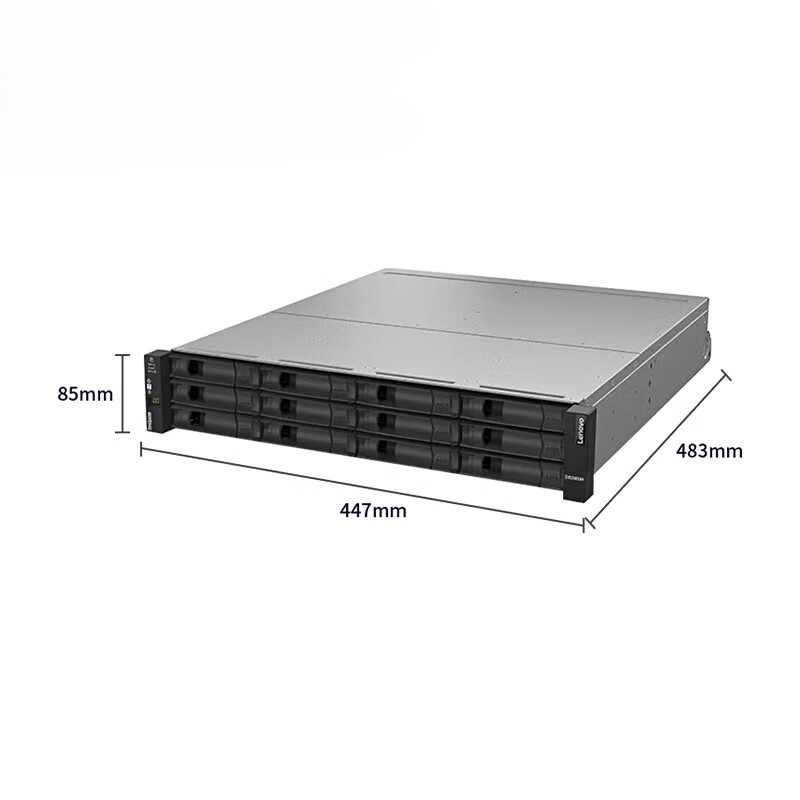

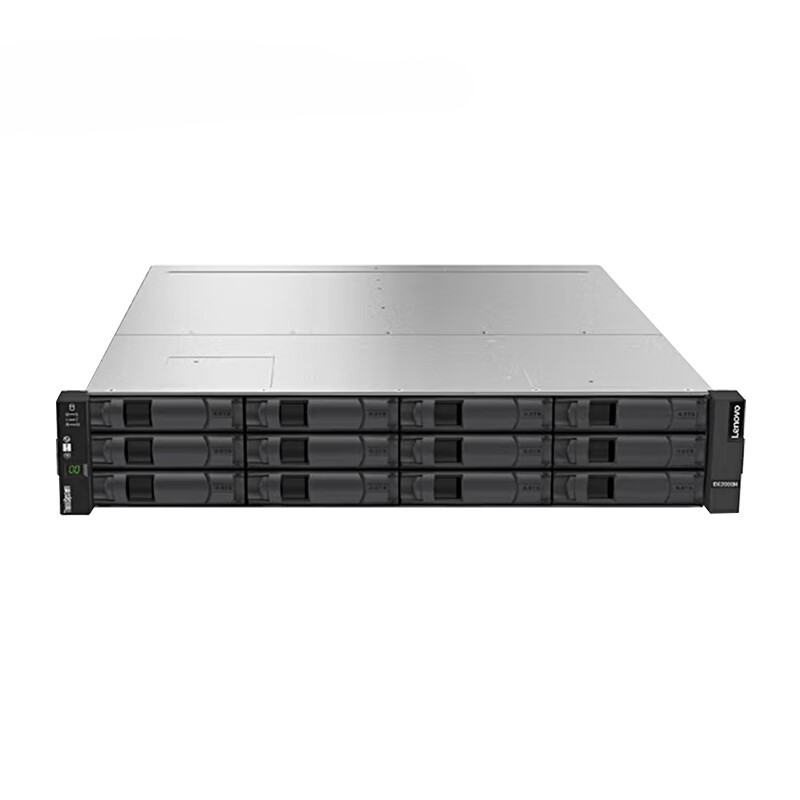

| Form factor | DE2000H 2U24 SFF/2U12 LFF controller enclosure (Machine Type 7Y71/7Y70): 2U rack mount. DE240S 2U24 SFF / DE120S 2U12 LFF expansion enclosure: 2U rack mount. |
| Controller configuration | Dual active-active controller configuration with automatic load balancing. |
| RAID levels | RAID 0, 1, 3, 5, 6, and 10; Dynamic Disk Pools. (RAID 3 via CLI). |
| Controller system memory | 16 GB per system (8 GB per controller). Cache mirroring and Flash-backed cache protection. |
| Expansion enclosure support | Up to 3 expansion enclosures (DE120S or DE240S) may be mixed. |
| Drive bays | Up to 48 LFF or 96 SFF hot-swap drive bays per system (1 Controller + 3 Expansion units). |
| Drives Supported | SAS HDDs (10K rpm), NL SAS HDDs (7.2K rpm), SAS SSDs (1 DWD/3 DWD), and FIPS encryption versions. |
| Storage capacity | All SFF: Up to 1.47 PB (96x 15.36 TB SSDs). All LFF: Up to 864 TB (48x 18TB HDDs). |
| Host operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere. |
| Software features | Dynamic Disk Pools, SSD read cache, snapshots, volume copy, thin provisioning, encryption, and asynchronous mirroring. |
