Nexus AI Server
1 / 5

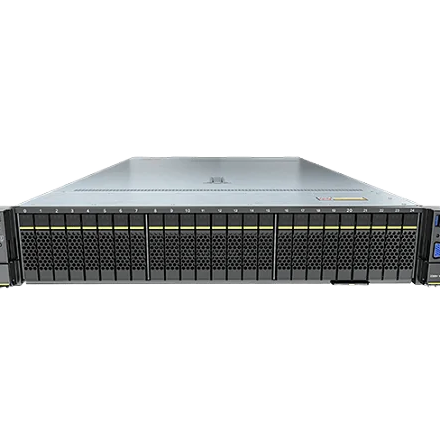

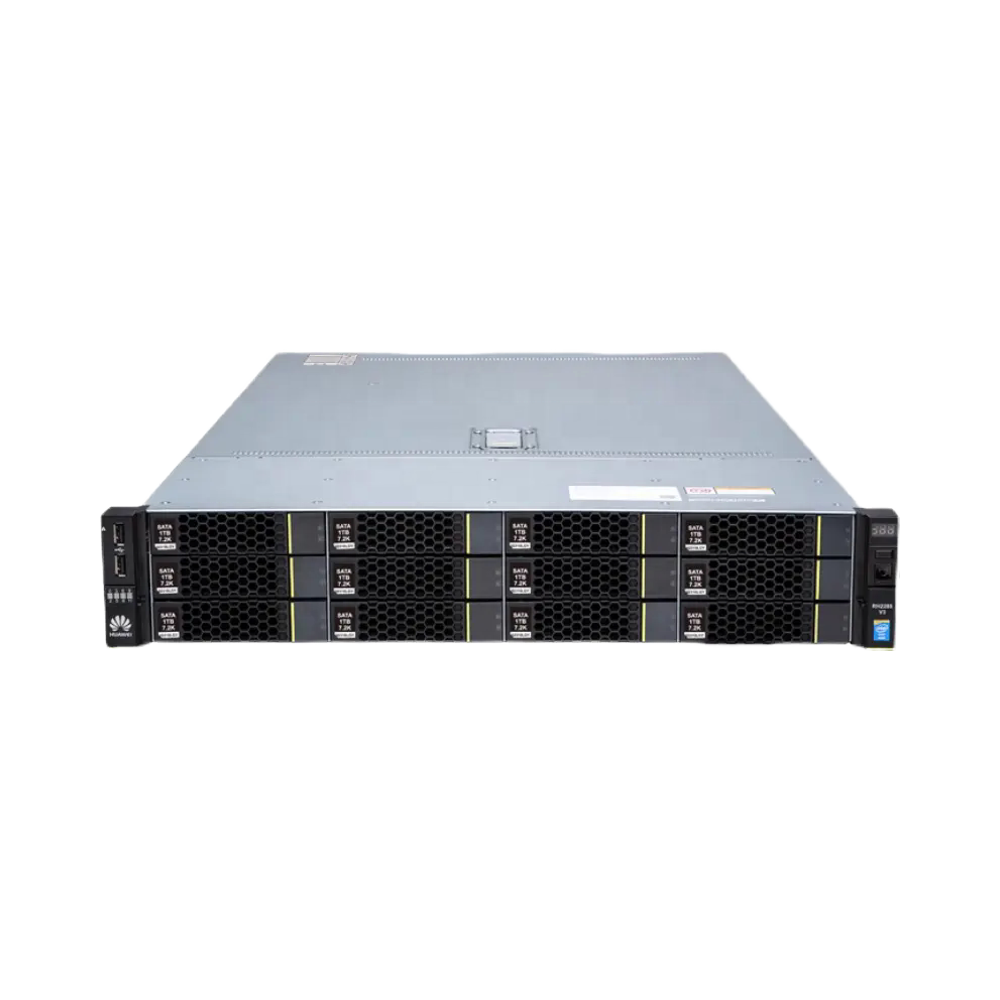

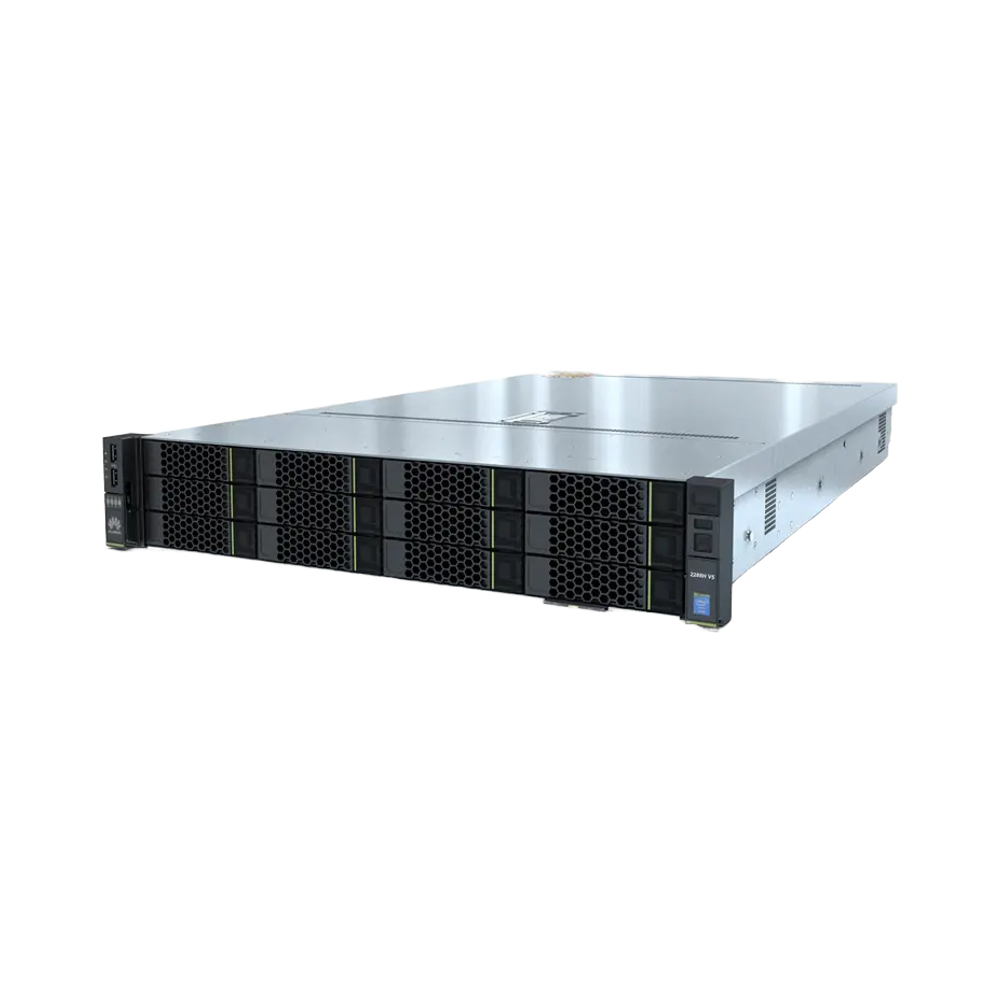

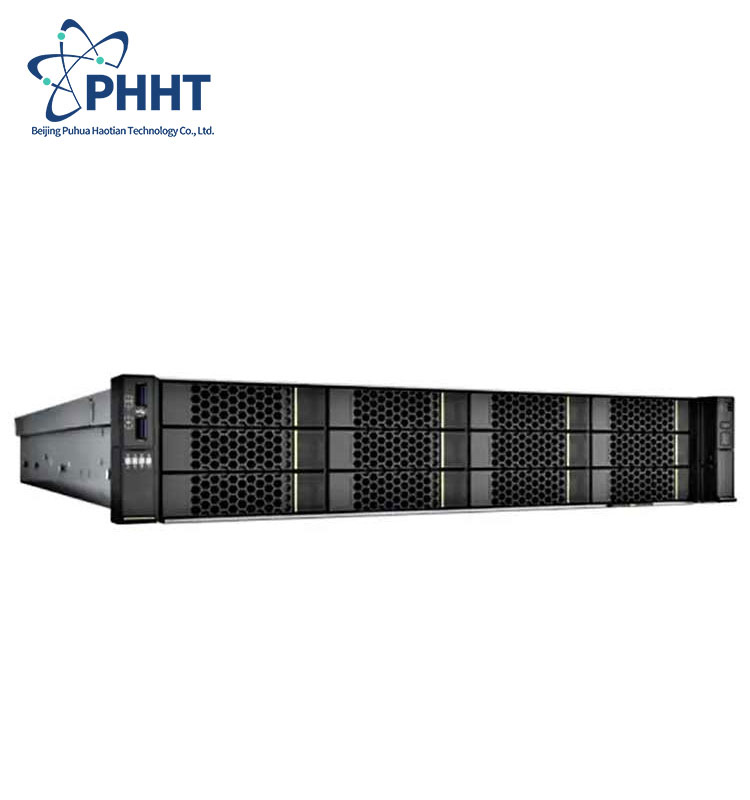

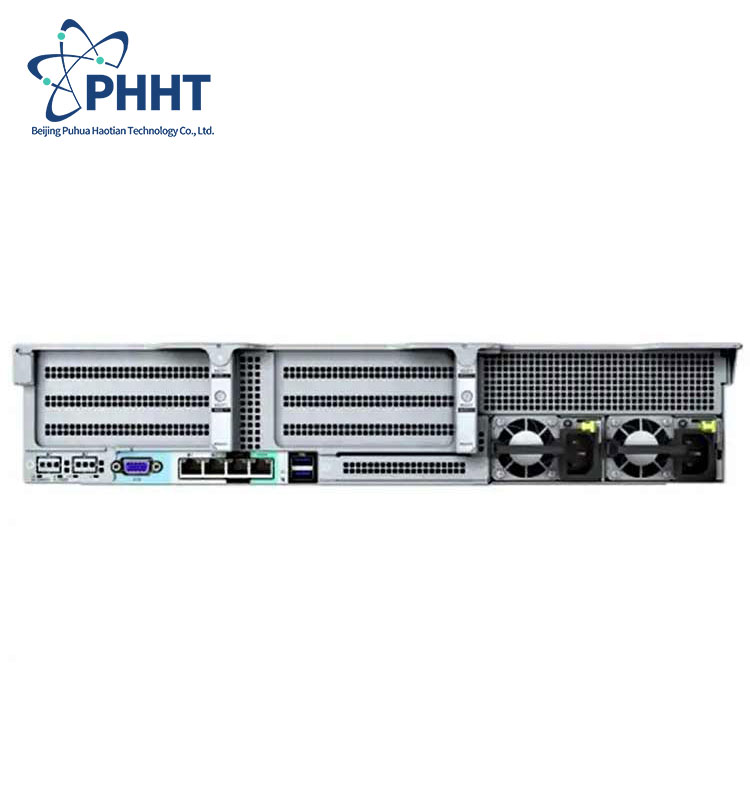

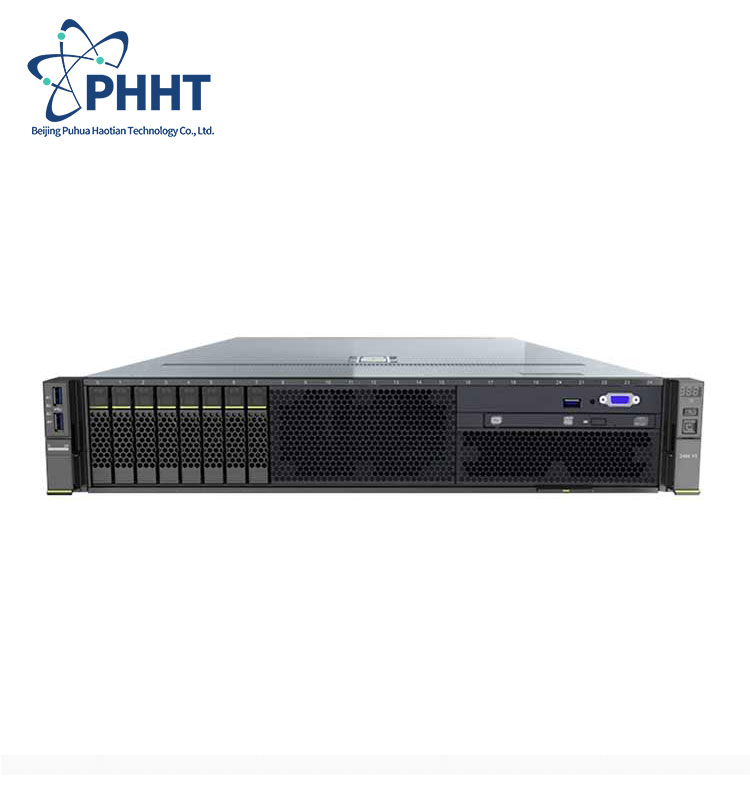

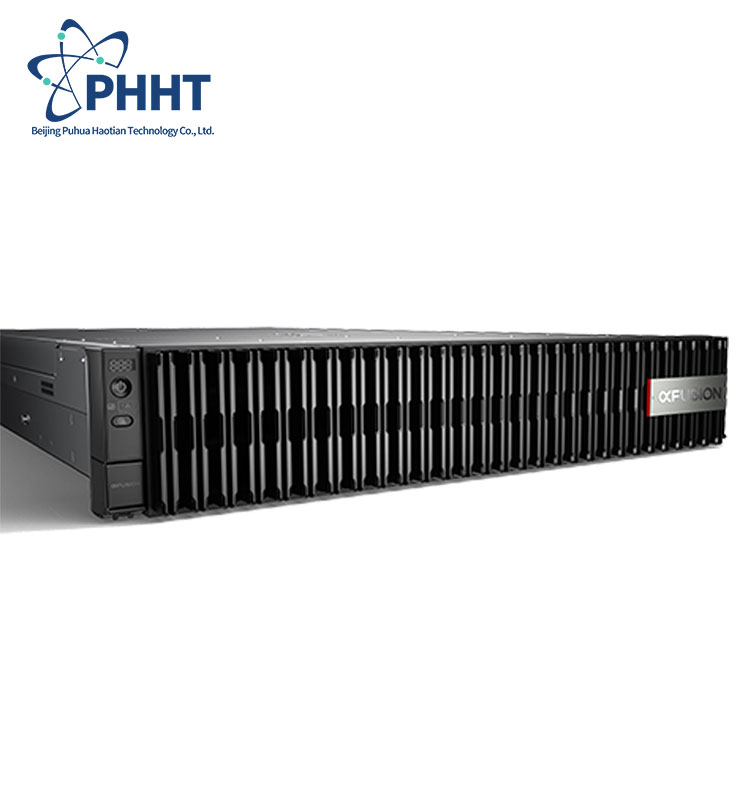

| Model | 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel Xeon Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Chipset | Intel C621A |
| Memory | 16/32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane™ PMem 200 series, up to 3200 MT/s |
| Local Storage |
Supports various drive configurations and hot swappable:
|
| RAID Support | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks. Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapters respectively, which can be configured as required. Hot swappable function supported. |
| PCIe Expansion | Provides up to 14 PCIe 4.0 expansion slots for a variety of applications. |
| Heterogeneous Acceleration Cards | Supports four 300 W FHFL dual-width GPU accelerator cards, eleven HHHL single-width GPU accelerator cards, or eight FHFL single-width GPU accelerator cards. |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy mode. |
| Dimensions (H x W x D) |
Chassis with 3.5-inch drives: 86.1 mm x 447 mm x 790 mm (3.40 in. x 17.60 in. x 31.10 in.) Chassis with 2.5-inch drives: 86.1 mm x 447 mm x 790 mm (3.40 in. x 17.60 in. x 31.10 in.) |
