Nexus AI Server
1 / 5

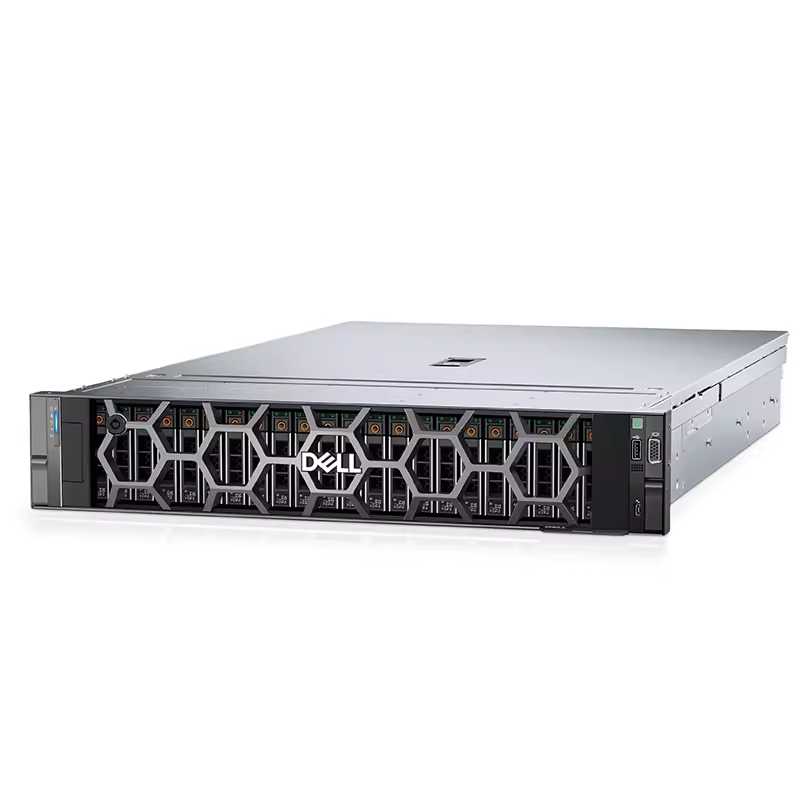

| Model | Poweredge R760 |
| Processor | • Up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors with up to 56 cores per processor and with optional Intel® QuickAssist Technology • Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor |
| Memory | • 32 DDR5 DIMM slots, supports RDIMM 8 TB max • Speeds up to 4800 MT/s on 4th Gen Intel Xeon Scalable • Speeds up to 5600 MT/s on 5th Gen Intel Xeon Scalable • Supports registered ECC DDR5 DIMMs only |
| Storage controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • External Controller: PERC H965e • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
| GPU | Up to 2 x 350 W DW and 6 x 75 W SW |
| PCIe | Up to eight PCIe slots |
| Power Supply | • 3200 W Titanium 277 VAC / 336 HVDC • 2800 W Titanium 200—240 HLAC / 240 HVDC • 2400 W Platinum 100—240 VAC / 240 HVDC • 1800 W Titanium 200—240 HLAC / 240 HVDC • 1400 W Titanium / Platinum options • 1100 W Titanium / Platinum / DC options • 800 W Platinum / 700 W Titanium options |
| Warranty | 3 years |
