Nexus AI Server
1 / 5
| Model | SR630 V2 |
| Processor | Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 40 cores, up to 270W TDP |
| Memory | 32x DDR4 memory slots; Maximum 4TB using 32x 128GB 3DS RDIMMs; Supports up to 16x Intel® Optane™ DC persistent memory 200 Series modules (PMem) |

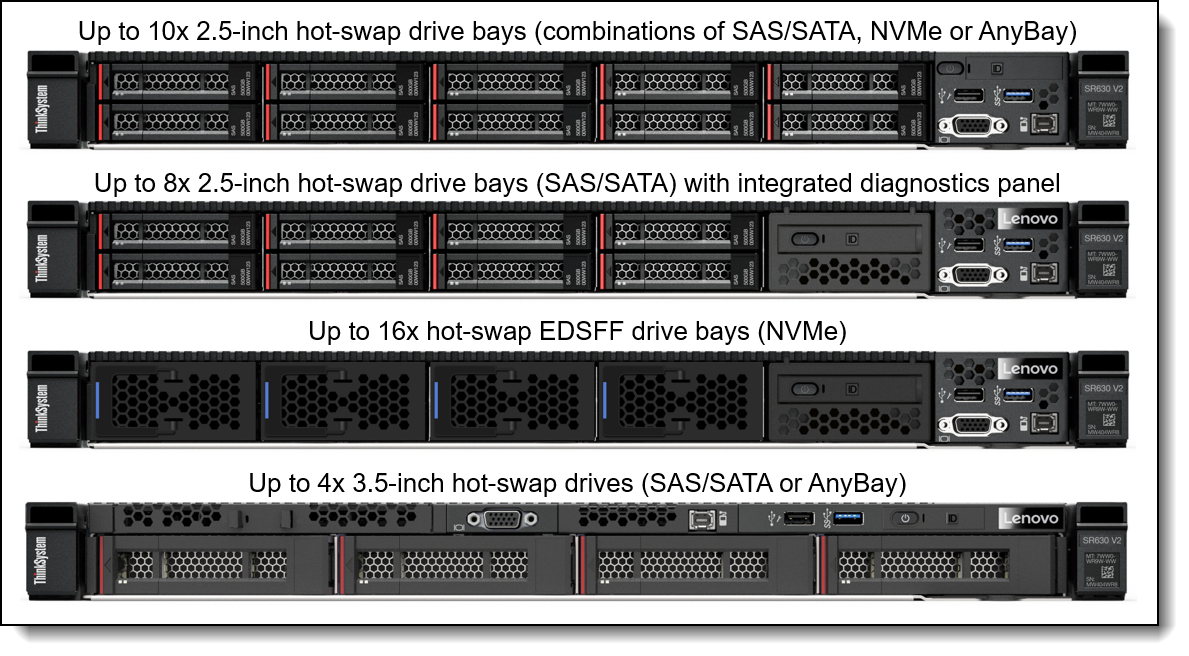

| Drive Bays | Front and rear drive bays of up to 4x 3.5-inch + 2x 2.5-inch drives, or 12x 2.5-inch drives, or 16x EDSFF drives; Up to 12x NVMe drives supported; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1) |
| Network Interface | LOM adapter installed in the OCP 3.0 slot; PCIe adapters |
| Ports |

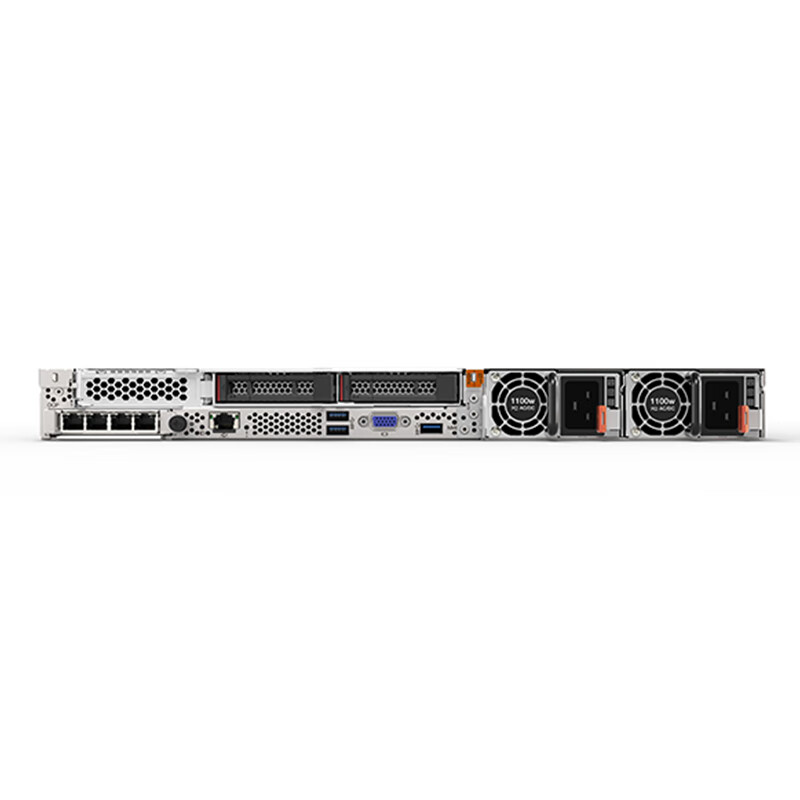

Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional) |
| GPU | Up to 3x single-width 75W GPUs |
| Power Supply | Dual redundant power supplies (up to 1800W Platinum) |
| Expansion Slots | Up to 3x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot |
| Warranty | 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades |
