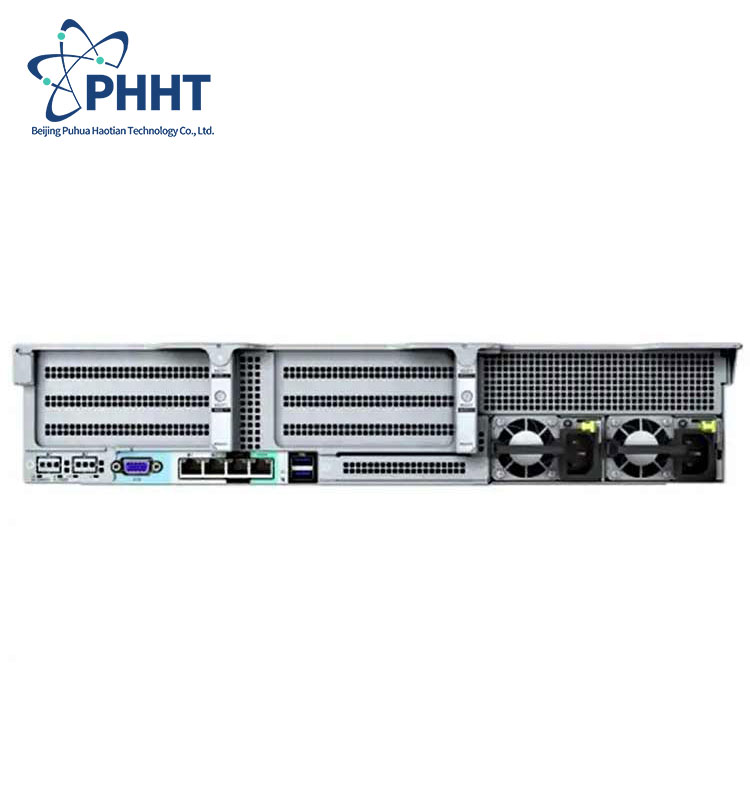

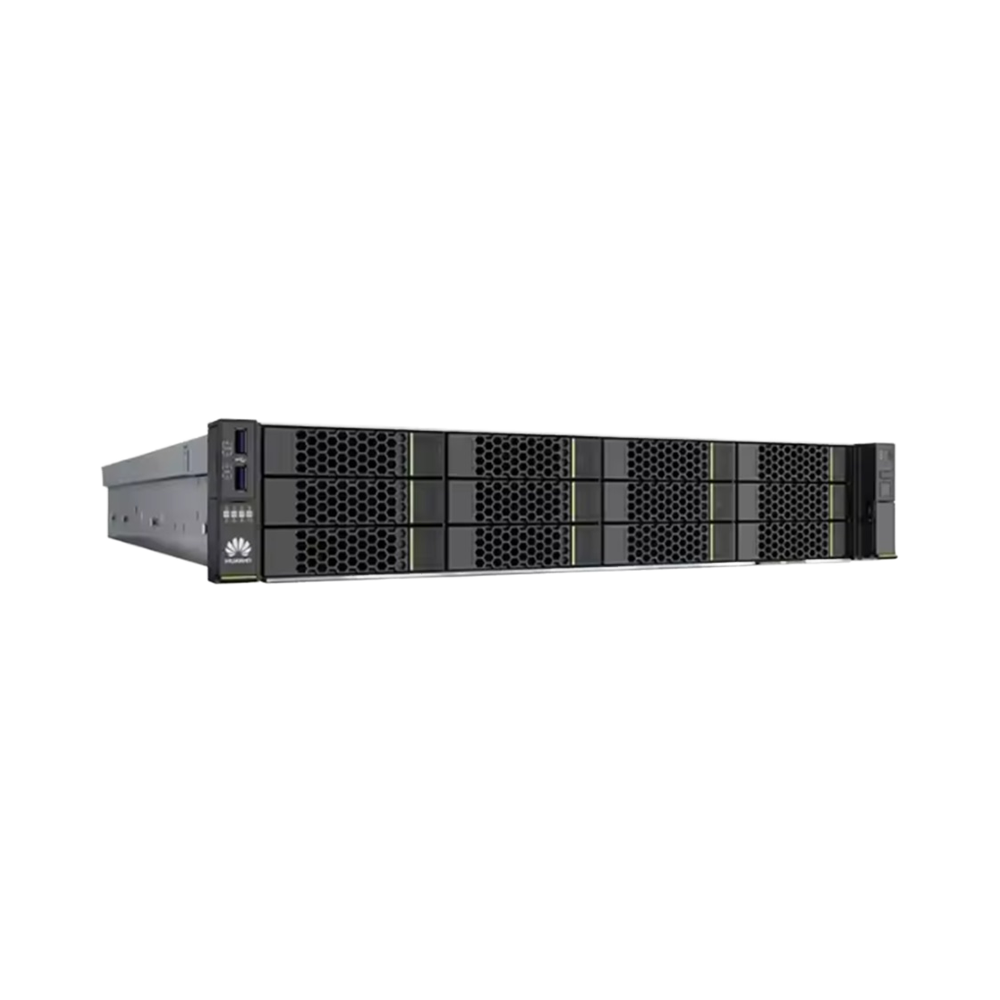

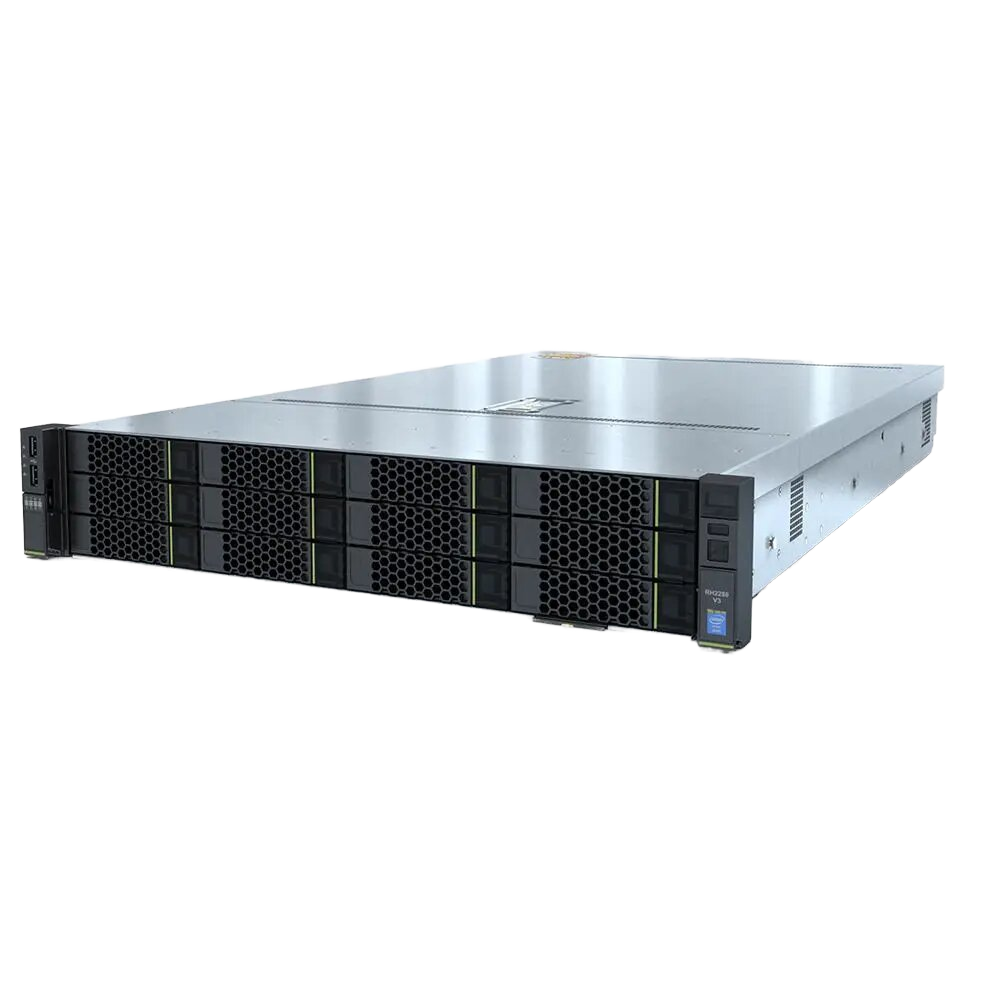

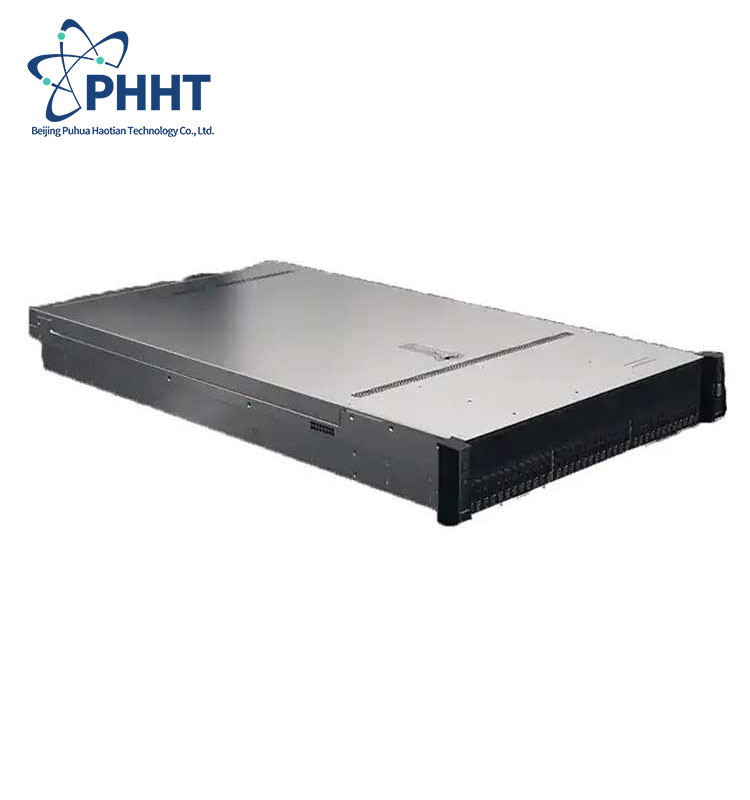

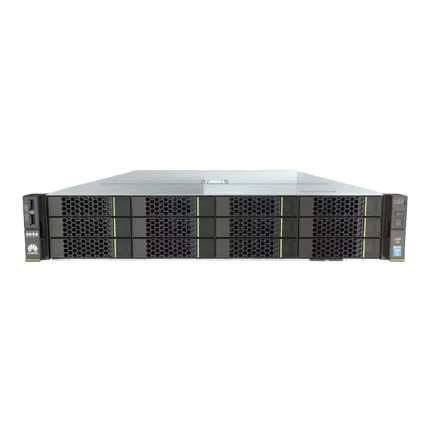

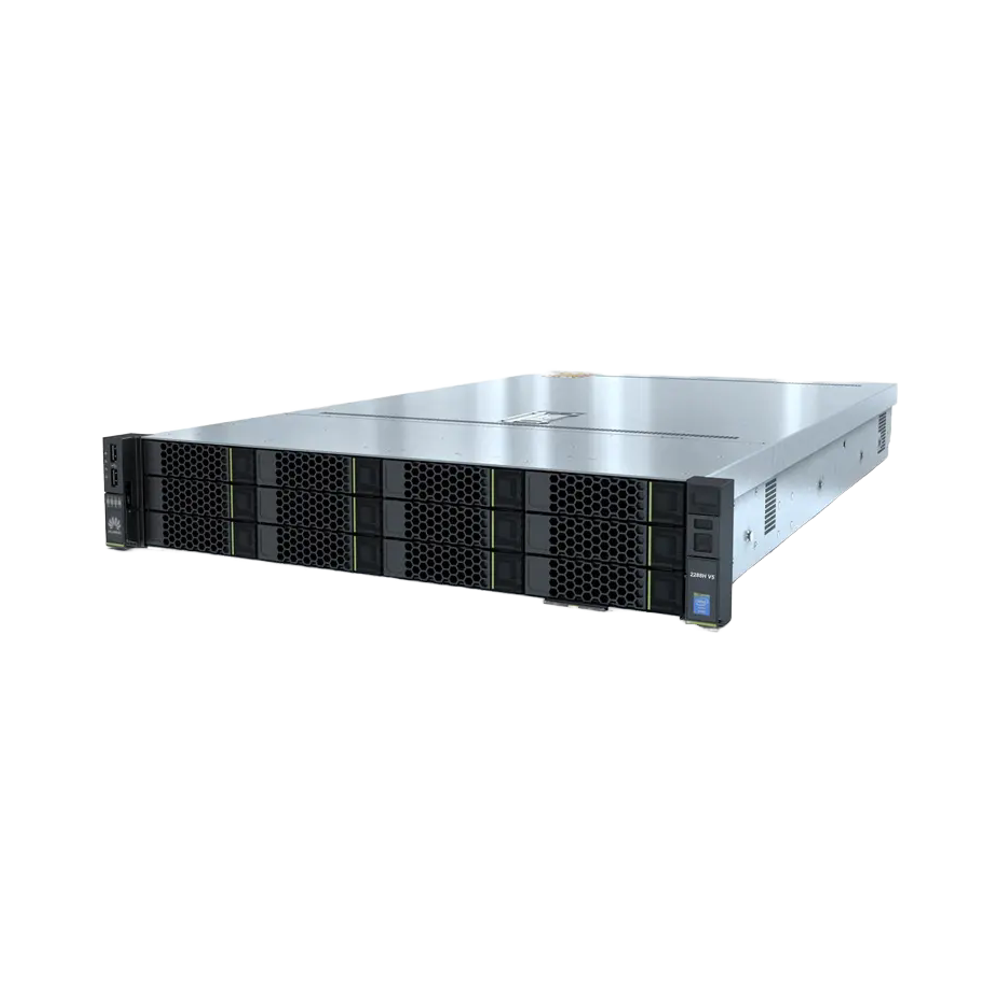

| Model | 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors |
1 or 2 1st Generation Xeon Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Xeon Scalable processors (3200/4200/5200/6200/8200 series), up to 205W |
| Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Optane™ PMem modules (100 series), 2666 MT/s |
| Internal Storage |
Supports hot-pluggable drives with the following configuration options: • 8 x 2.5-inch SAS/SATA HDDs or SSDs • 12/16/20 x 3.5-inch SAS/SATA HDDs • 4, 8, 12, 24, or 28 NVMe SSDs • 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SATA SSDs, hot swappable, hardware RAID |
| RAID Support |
RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network Ports |
LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Heterogeneous Accelerator Card |
Up to 7 single-width half-height half-length accelerator cards Up to 2 dual-width full-height full-length accelerator cards |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Power Supply Units |
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: • 550W AC Platinum PSUs • 900W AC Platinum/Titanium PSUs • 1,500W AC Platinum PSUs • 1,500W 380V HVDC PSUs • 1,200W -48V to -60V DC PSUs |
| Dimensions (H x W x D) |
Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
