Nexus AI Server
1 / 5
| Model | DL 388 G10 |
| Processor | Supports 2 third-generation Intel® Xeon® Scalable processors, each with up to 40 cores and a maximum power of 270W |
| Memory | Supports up to 32 DDR4 memories, with a maximum speed of 3200MT/s, supports RDIMM or LRDIMM, and the maximum capacity of a single processor is 6TB |
| Storage |
Supports up to 38 2.5-inch SATA/SAS hard drives (24 front + 8 internal expansion + 6 rear expansion) Supports up to 20 3.5-inch SATA/SAS hard drives (12 front + 4 internal expansion + 4 rear expansion) Supports up to 34 NVMe SSDs Support NVMe U.2, U.3, AIC, M.2 solid state drives |
| Storage controllers |
Standard onboard array controller, supports SATA RAID 0/1/10/5 Optional HBA card based on dedicated array card slot and Smart Array series array card Intel VROC and HPE Smart Storage SR100i with NVMe support Optional Tri-mode (NVMe/SAS/SATA) HPE Smart Array controller Optional hardware RAID1 operating system boot device with built-in M.2 solid state drive (NS204i-p) |
| GPU | Up to 8 single-wide GPU cards or 3 double-wide GPU cards |
| CD-ROM drive | Supports external optical drives; some models support built-in optical drives |
| Power Supply | Optional up to 1600W 1+1 hot-swappable redundant power supply, supporting up to 96% titanium; can support 6 hot-swappable redundant fans |

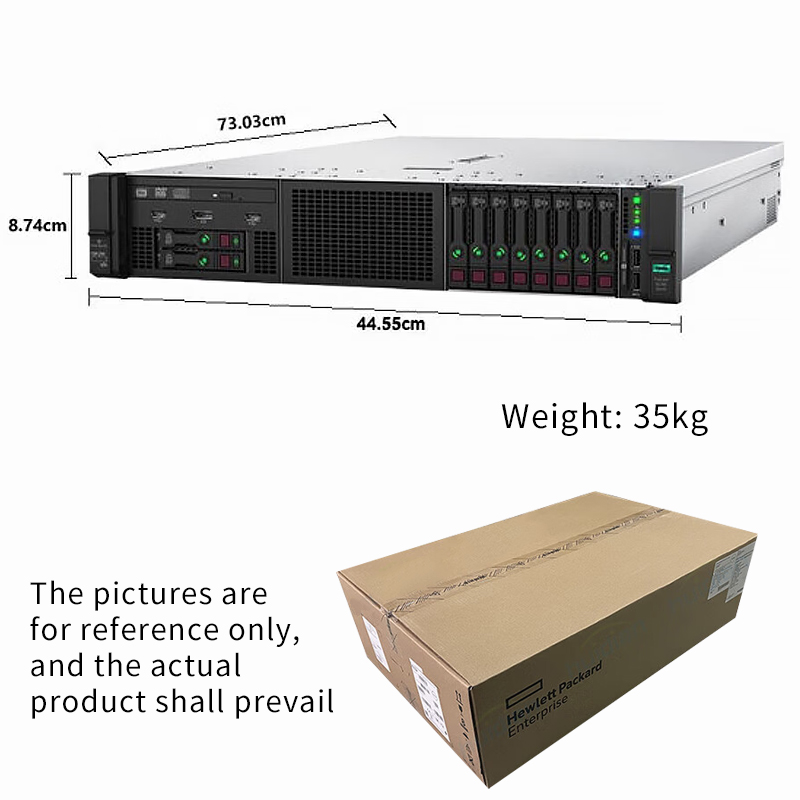

| Size |
87.3mm (height) × 445.4mm (width) × 711.2mm (depth) (2.5-inch hard drive model) 87.3mm (height) × 445.4mm (width) × 743.9mm (depth) (3.5-inch hard drive model) |
| Warranty | 3 years |
